型号Model |
CMC Crawlers S25 |
最大工作高度Max. working height |
25 m |
最大平台高度Max. lifting height |
23 m |
最大水平延伸Max. working outreach |
14 m |
平台篮尺寸Basket size |
1,7x0,7x1,1 m |
最大承载重量Basket max. load |
230 kg |
底盘旋转角度Turret rotation |
± 360° |
平台旋转角度Basket rotation |
± 90° |
最机重量Weight |
3800 kg |
今天CMC引领全球蜘蛛车科技,并将产品销售到了超过30个国家,结合巧妙的新思路,做最简单,易操作的高空作业设备,是我们成功的关键。这种成功的方法也给客户带来的最好的价值和更高的投资回报率。
在技术方面,可靠性和效率是我们的追求,产品从设计阶段,没有什么是可以忽略的。我们能够预见和解决所有的问题,包括设备在工作期间或者工作之后。操作人员只需要系好安全带。
设计的高标准,渴望更好的安全性和无限的追求卓越,我们的成功进一步通过不断投资和集成新的先进技术,不断创新,包括经验丰富的来自世界各地的工程师,才华横溢的工程师、装配技术人员和权威的测试专家。
每个平台制造与高度执行组件,最佳耐久性的升力,CMC机器有14步骤检测过程,要求苛刻,以确定他们的性能是最好的。CMC做专业的蜘蛛车与车载高空升降平台。
Equipped with many exceptional time saving
features, this reliable 25 m working height lift has an impressive 14 m
outreach.

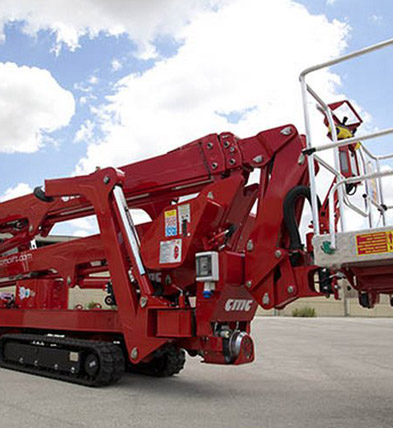

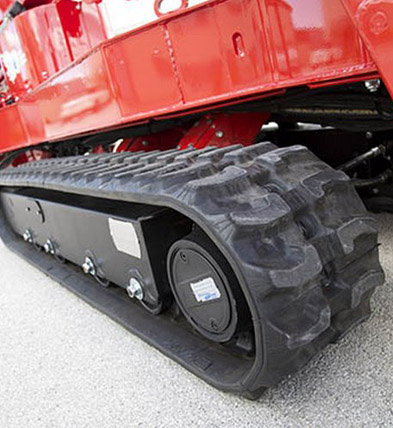

The S25 is a self-propelled tracked aerial platform, designed with 1
articulating/1 telescopic lower boom and 1 articulating/2 telescopic upper
booms, plus articulating jib on the end. This combination allows for best work

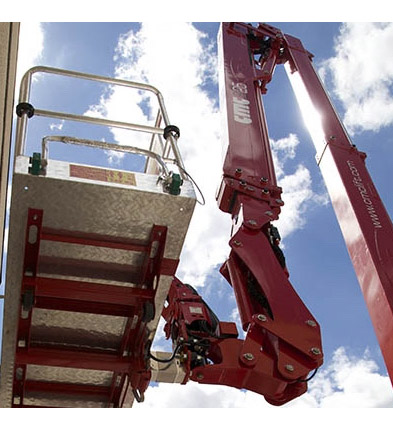

maneuverability and outreach. A quick release 180° rotating basket with triple
safety locks, rounds out this great lift that is a pleasure to work with.
Standard basket size is 1,70 m wide. Other smaller basket sizes are also
available to best fit your application. The S25 comes equipped standard with

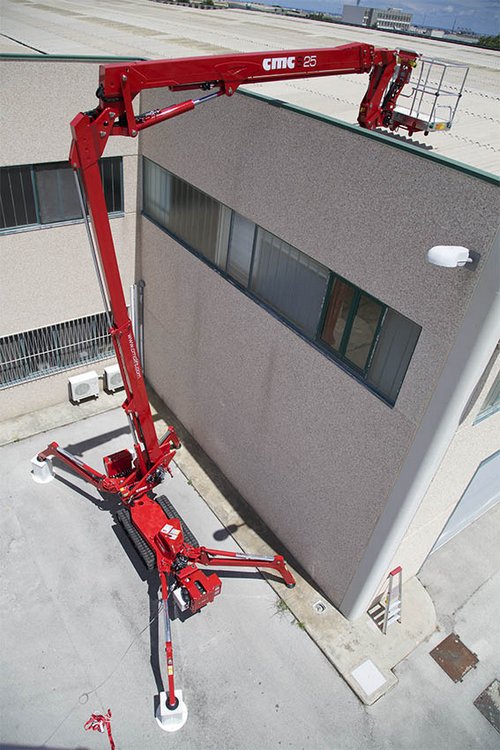

two stabilization areas and 6 possible outrigger configurations.
With incredibly compact dimensions of 88cm x
1,97m x 5,95 m (WxHxL), in the closed travel position, this serious aerial work
platform is capable of entering virtually any door.
Hybrid power source - quiet diesel engine/220v
electric hydraulic power pack is standard.
CMC S25 takes the place of the best-seller S24, improving its performance and
reliability!
