意大利CMC S19HD原装进口履带蜘蛛车

型号Model	CMC Crawlers S19HD
最大工作高度Max. working height	18,7 m
最大平台高度Max. lifting height	16,7 m
最大水平延伸Max. working outreach	11,7 m
平台篮尺寸Basket size	1,4x0,6x1,1 m
最大承载重量Basket max. load	200 kg
底盘旋转角度Turret rotation	± 360° (720°)
平台旋转角度Basket rotation	± 90°
最机重量Weight	2750 kg

凭借产品的品质与价值，CMC迅速成为世界上领先的车载式高空作业与自驱动蜘蛛车的专业制造商。
今天CMC引领全球蜘蛛车科技，并将产品销售到了超过30个国家，结合巧妙的新思路，做最简单，易操作的高空作业设备，是我们成功的关键。这种成功的方法也给客户带来的最好的价值和更高的投资回报率。
在技术方面，可靠性和效率是我们的追求，产品从设计阶段，没有什么是可以忽略的。我们能够预见和解决所有的问题，包括设备在工作期间或者工作之后。操作人员只需要系好安全带。
设计的高标准，渴望更好的安全性和无限的追求卓越，我们的成功进一步通过不断投资和集成新的先进技术，不断创新，包括经验丰富的来自世界各地的工程师，才华横溢的工程师、装配技术人员和权威的测试专家。
每个平台制造与高度执行组件，最佳耐久性的升力，CMC机器有14步骤检测过程，要求苛刻，以确定他们的性能是最好的。CMC做专业的蜘蛛车与车载高空升降平台。

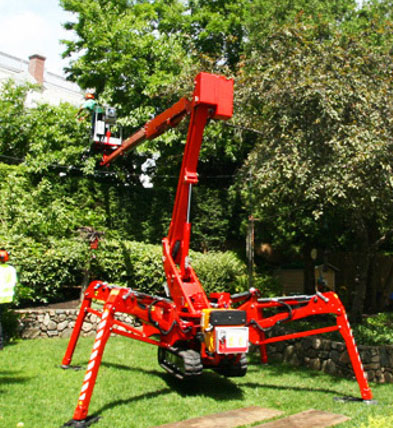

"Impressive side reach, so stable and secure!", this is the first reaction and comment from everyone that takes a ride on the heavy duty S19.  11.7m is serious outreach for a lift capable of entering doors as narrow as 915mm.
It features an extremely compact stabilization area with full side reach, including the ability to self level on steep sloped floors and terrain. In addition the S19 is also capable of setting up in “narrow mode”, with an even smaller footprint. This special feature allows reduced outreach, yet capable of full 360° rotation and full vertical height reach.
Designed and built with a configuration of one lower riser pantograph and two-telescopic boom extensions, the S19 allows for 200kg basket load and 180° basket rotation, with up to 19m working height. Compact dimensions of 900mm W x 1,99m H allows access in virtually any work area.
Equipped with a double stabilization area and articulated outriggers capable of raising the entire lift approximately 1.5m in height, allowing safer lift self loading onto a truck chassis,  avoiding the need to use “cumbersome loading and  unloading ramps”.
Hybrid power source - quiet diesel engine/220v electric hydraulic power pack is standard.
Easy to use control system with multiple toggles, allows for a smooth, comfortable and safe operator ride.
Internet connectable control system allows for quick remote diagnostics and corrections, for less expensive maintenance.
